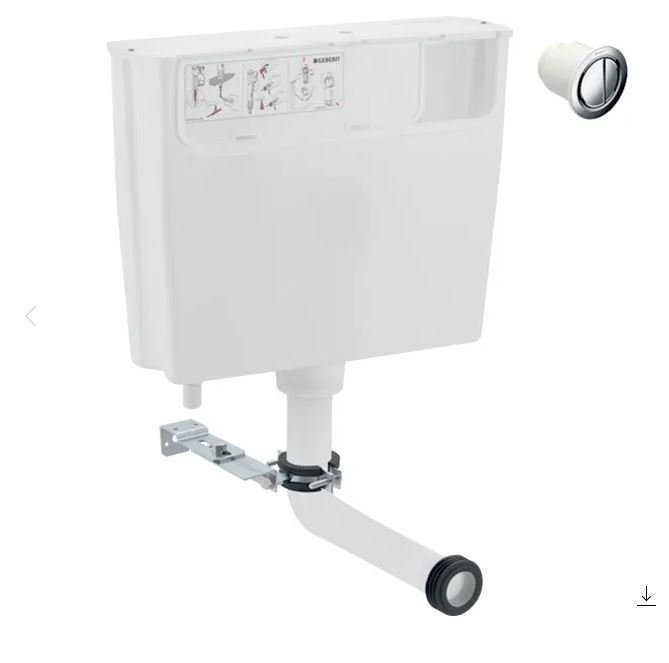

Geberit Low Height Concealed Dual Flush Cistern 6/3 Litres 109.724.21.2

 APPLICATION PURPOSES

• For drywall construction

• For installation in bathroom furniture

• For installation in part-height prewall installations

• For low level installation • For floor-standing WCs

• Not suitable for Geberit AquaClean Alba

• Not suitable for Geberit AquaClean Sela

CHARACTERISTICS

• Flush actuation pneumatic

• Dual flush

• Flush pipe connection with compression joint

• Cistern fulfils standard requirements in accordance with EN 14055, Class II

• Water supply connection on the bottom left • Water supply connection 1/2”

TECHNICAL DATA

Flow pressure 0.1–10 bar

Operating temperature, water max. 25 °C

Flush volume, factory setting 5.8 / 3 l

Product material Plastic

SCOPE OF DELIVERY

• Pneumatic dual-flush actuator

• Flush bend 90°

• Fastening material for flush pipe

• Cup for flush volume reduction 4.0 / 2.6 l

• Fastening material

INFO

• Supplied with 116.050.21.1 Type01 pneumatic actuator

• The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
